Model | HF75P | HF75A |
Screen | Panel Brand | LG/Samsung/AUO/BOE |
Panel size | 75" (optional,32"~98") |
Display size | 1209mm(H)×680mm(V) |
Display ratio | 16:9 |
Resolution | 1080*1920 |
Viewing angle | 89/89/89/89 (Min.)(CR≥10) |
Color | 16.7M |
Backlight | LED |
Brightness | 450-700 cd/m2 |
Contrast ratio | 1100:1 |
OS System | main board:i5-3317U(optional) | CPU:RK3288(optional) |
RAM:4G,SSD:128G(optional) | RAM:2G,EMMC:8G(optional) |
Operation | Windows 7(optional,win8,win8.1,win10) | Android 4.2(optional,Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) |

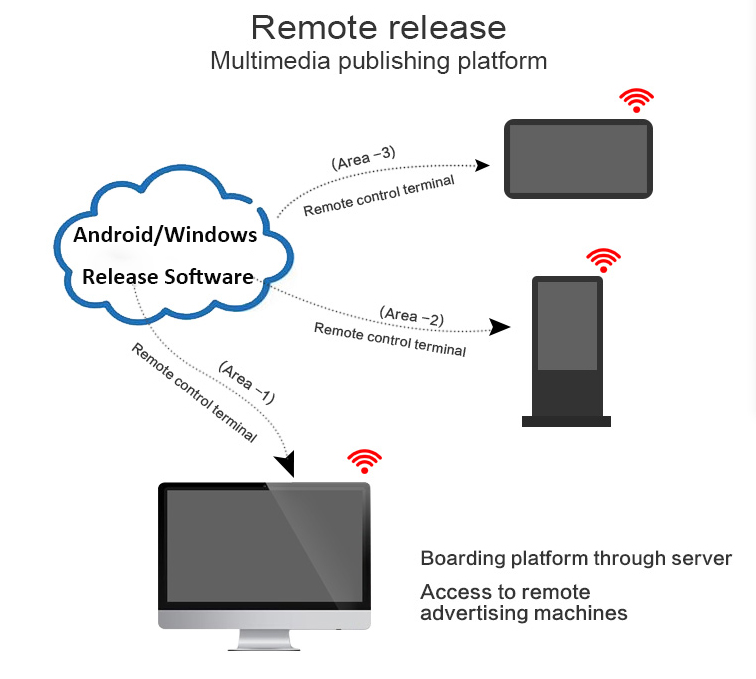

Connection to network | RJ45, 4G, WIFI (optional) | RJ45 ,4G,WIFI (optional) |
Touch Screen system | Touch screen | Infrared touch screen (touch foil, capacitive) | Infrared touch screen (touch foil, capacitive) |
Touch ways | finger,touch pen | finger,touch pen |
Touch dots | 10dots (optional,20dots,40dots) | 10dots (optional,20dots,40dots) |
Durability | More than 50 million touch | More than 50 million touch |
Power | Power | 140W | 120W |
Voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ |
Stability | good | good |
Instructions | Interface | VGA/HDMI/USB | HDMI/USB/SD |
Working temperature | 0°C ~ 50°C | 0°C ~ 50°C |

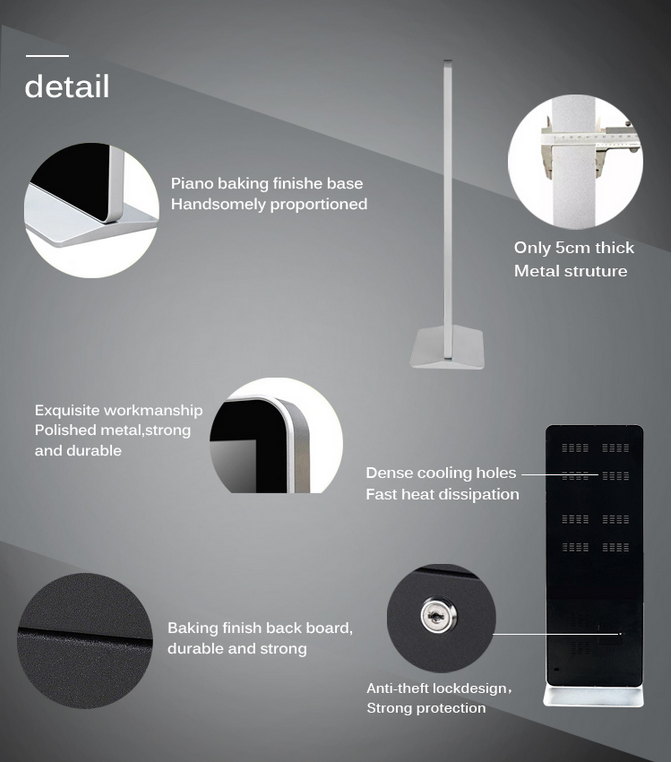

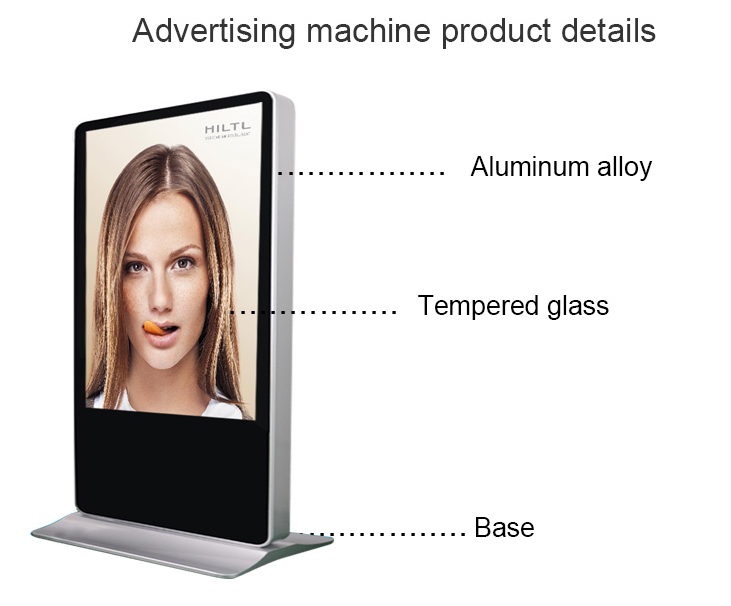

Material | Aluminum alloy,tempered glass | Aluminum alloy,tempered glass |
Surface | Spraying,frosted aluminum | Spraying,frosted aluminum |
Size | Undetermined | Undetermined |
Weight | Undetermined | Undetermined |
Body | Shell | Galvanized steel sheet. Thickness:1.0-1.5mm. |

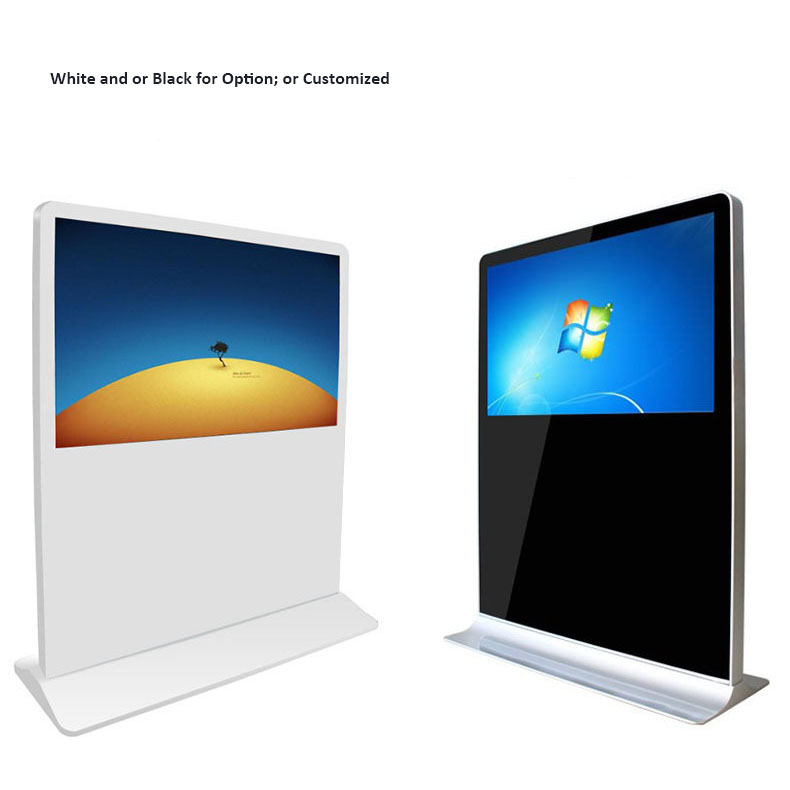

Color | Black , white , silver or customized colors |
Packing | By carton with foam inside & woonden |
Optional Functions | Anti-dazzle |
3G/4G Capability |
