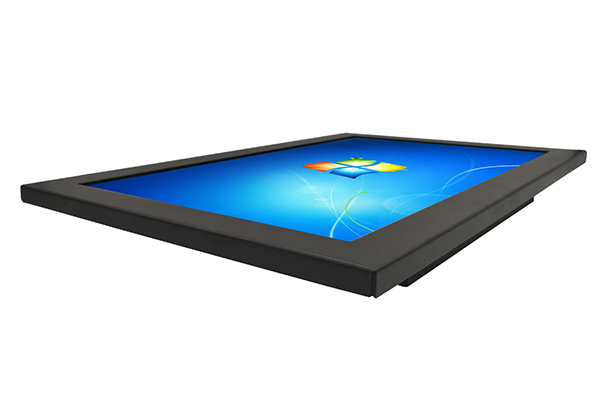

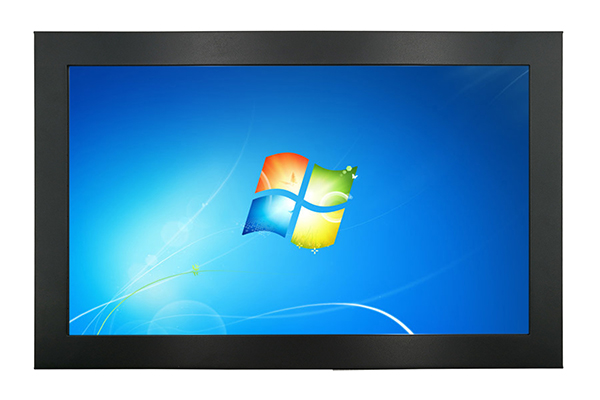

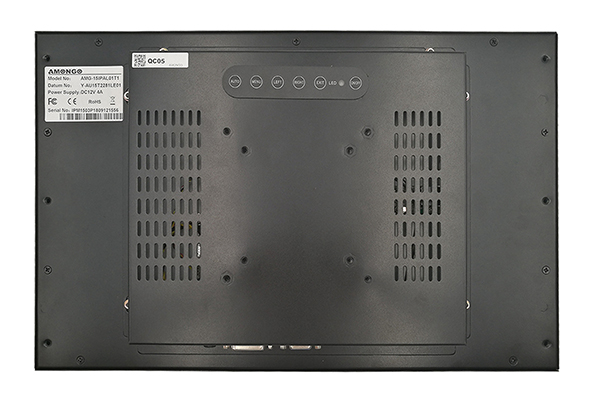

15.6" Wall Mount LCD Monitor

Code： HW15.6
Panel： LG/Samsung/BOE/Others

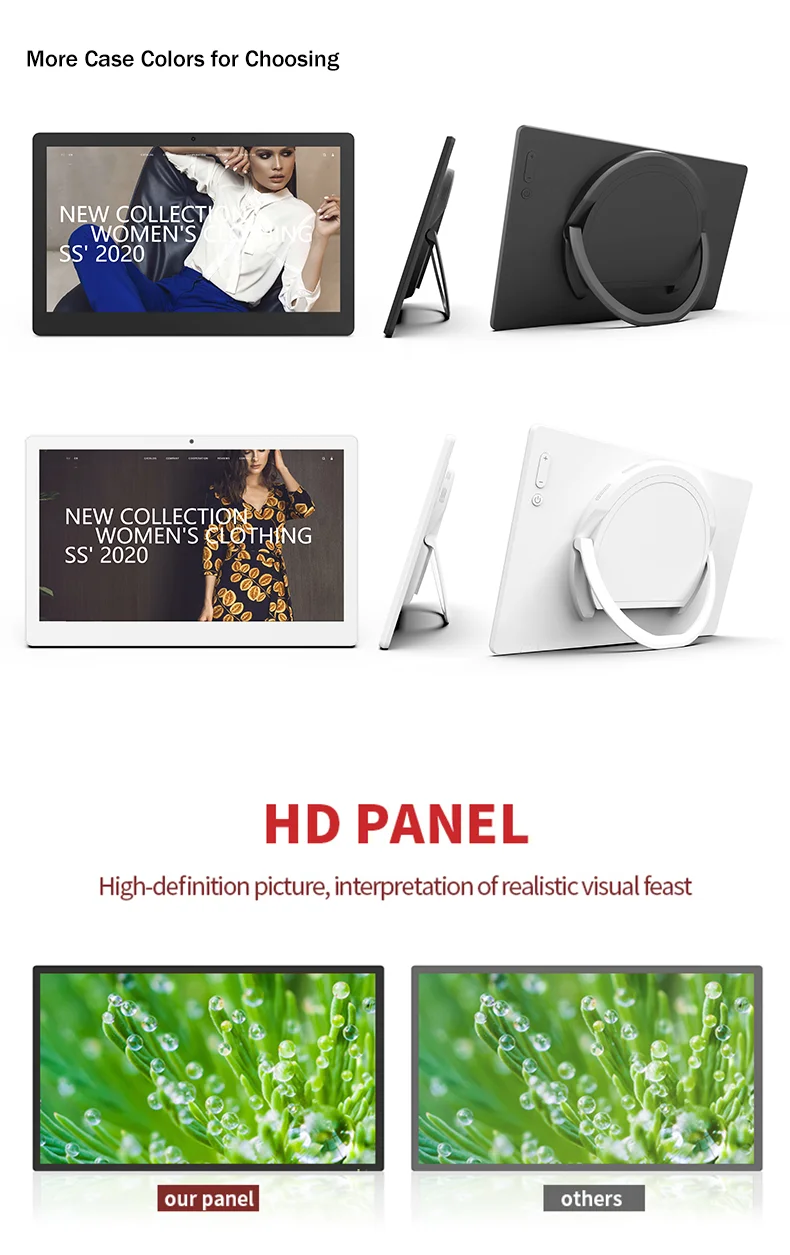

Color： Black/Silver/White/Customized
Touch： Non-Touch
Material： 3-5mm Tempered Glass/Cold Rolled Metal Case
System： Single/Android/Windows
13800000000 Reservation Now
Data sheet
Product detail
Project case
Model NameHW15.6N
Screen Size15.6"
Active Display Area(mm)344.16(H)x193.59(V)
Pixel Pitch(mm)0.17925(H)x0.17925(V)
Display ModeNormally black
Display Color262K
Display Resolution(pixel)1920x1080
Contrast Ratio800:01:00
Brightness300nits
BacklightLED
Viewing Angles(CR=10)170(H);170(V)
Response Time(Typ.Tr+Tf)30ms
Touch ScreenResistive touch(5 wire)
Brightenss / Light SensorOptional
Signal ConnectorVGA/DVI-D
Power InputDC 12V (DC2.0/DC2.5)
Touch ControllerUSB
Dimension(VxHxT)397.5x246.8x35
Operating Temperature0～50℃
Storage Temperature-20～60℃
Relative Humidity5(%RH)～90(%RH)
