70" Wall Mount Smart Whiteboard

Code：	HM70
Panel：	LG/Samsung/BOE/Others
Color：	Black/Silver/White/Customized
Touch：	Infrared Touch
Material：	3-5mm Tempered Glass/Cold Rolling Metal Case
System：	Android & Windows

13800000000 Reservation Now

Data sheet

Product detail

Project case

Specifications
Panel Info.
Size	55"	65"	75"	85"
Aspect Ratio	16:9	16:9	16:9	16:9
Resolution	3480 x 2160	3480 x 2160	3480 x 2160	3480 x 2160
Constract Ratio	5000:1	4000:1	1200:1	1200:1
Viewing Angle	178°（H/V）	178°（H/V）	178°（H/V）	178°（H/V）
Brightness	≥350cd/㎡	≥350cd/㎡	≥350cd/㎡	≥350cd/㎡
Panellife	50000HRS.	50000HRS.	50000HRS.	50000HRS.
Power Info.
In-put Voltage	100-240V ~ 50/60Hz
Rated Power	≤200W	≤300W	≤350W	≤400W
Standby Power	≤0.5W	≤0.5W	≤0.5W	≤0.5W
Configure
Android System	CPU: ARM Cortex A53
Android System	2GRAM + 16G/32G/ROM; System Version 6.0

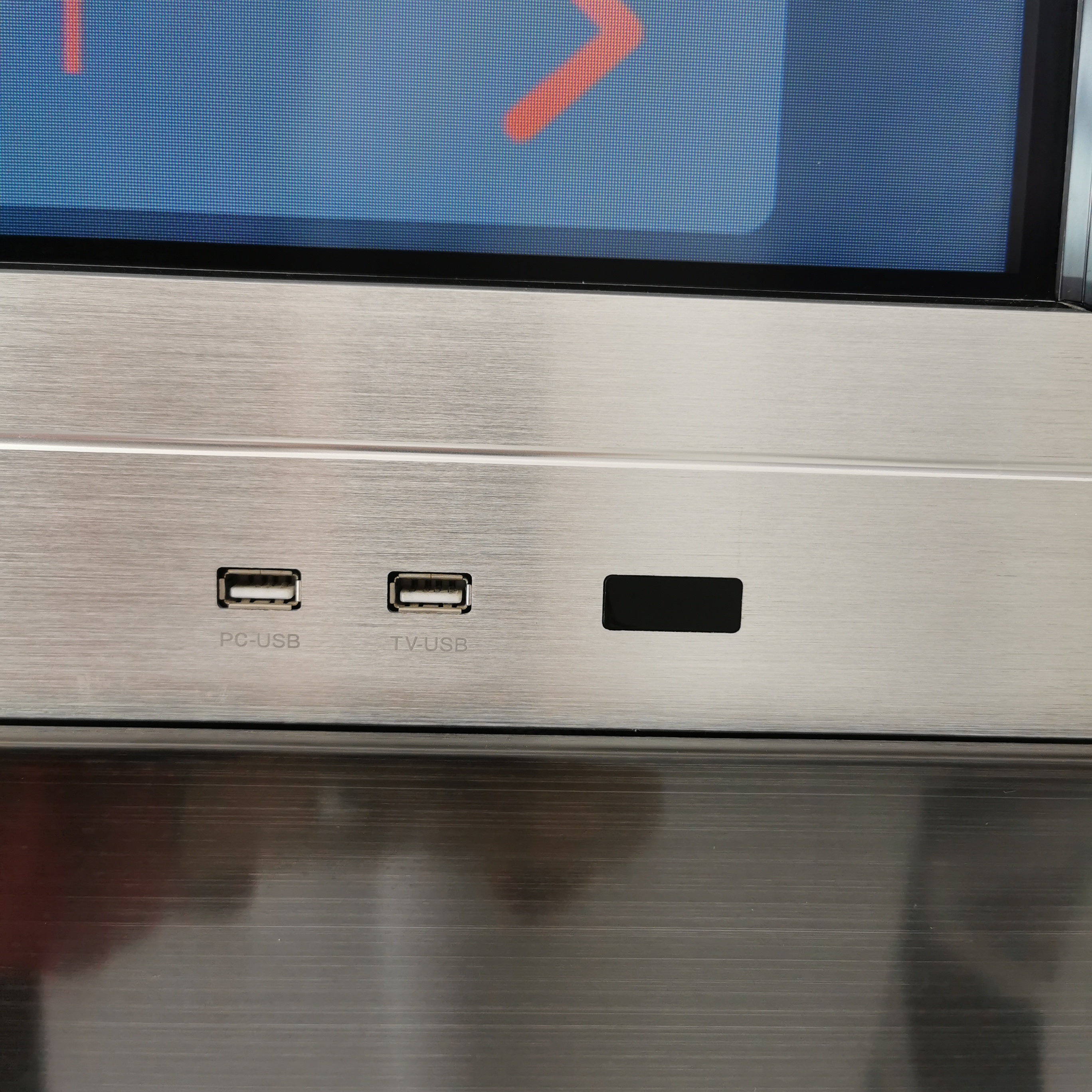

Input Interface	USB*3	USB*3	USB*3	USB*3
Input Interface	AV + VGA + YPbPr + Audio + RJ45 + TF Card, RS232
output Interface	USB OUT; Headphone OUT
Touch Info.	0.09S	0.1S	0.1S	0.12S
Style	10 to 20 Points Infared Touch
Glass	Anti-Glare 4MM Thickness Tempered Glass
Optional
OPS	CPU: i3/i5/i7
OPS	2G/8G DDR3 + 128G SSD/500G HDD
Packing Info.
Packing Size	1400200800 MM	1570155970MM	18051701140MM	20501601265MM
Weight	50KG	62KG	85KG	96KG
Loading QTY(20GP)	80PCS	68PCS	21PCS	18PCS
Loading QTY(40GP)	246PCS	144PCS	86PCS	38PCS

Product Description
