LCD Splicing Screen Product Features:
High brightness---4K ultra clear
178 degree viewing angle that you can see the image and video
Ultra narrow screen edge(0.88mm/1.8mm/0.35mm for your optional)
Strong color performance can provide you with high quality images
Free Spicing and free Combination,different display styles
Different installation styles for your easy operation and maintainance
| Specifications |
|
| Video Wall Panel Specifications |
| LCD Technology | SAMSUNG/LG/BOE/others DID LCD |
| Active Screen | 46"/49"/55"/65"/others 16:9 |
| Bezel Width | Total: 3.5mm - 5.3mm |
| Aspect Ratio | 16:09 |
| Physical Resolution | 1920*1080 |
| Backight System | LED |
| Luminance(nits) | 500cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | L/R/U/D 178°/178°/178°/178° |
| Pixel Pitch(WxH) | 0.76125×0.76125mm |
| Active Display Area(WxH) | 1039.8675×584.64 mm and others |
| Panel Dimension(WxHxD) | 1046.8×591.6x49.5mm and others |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |

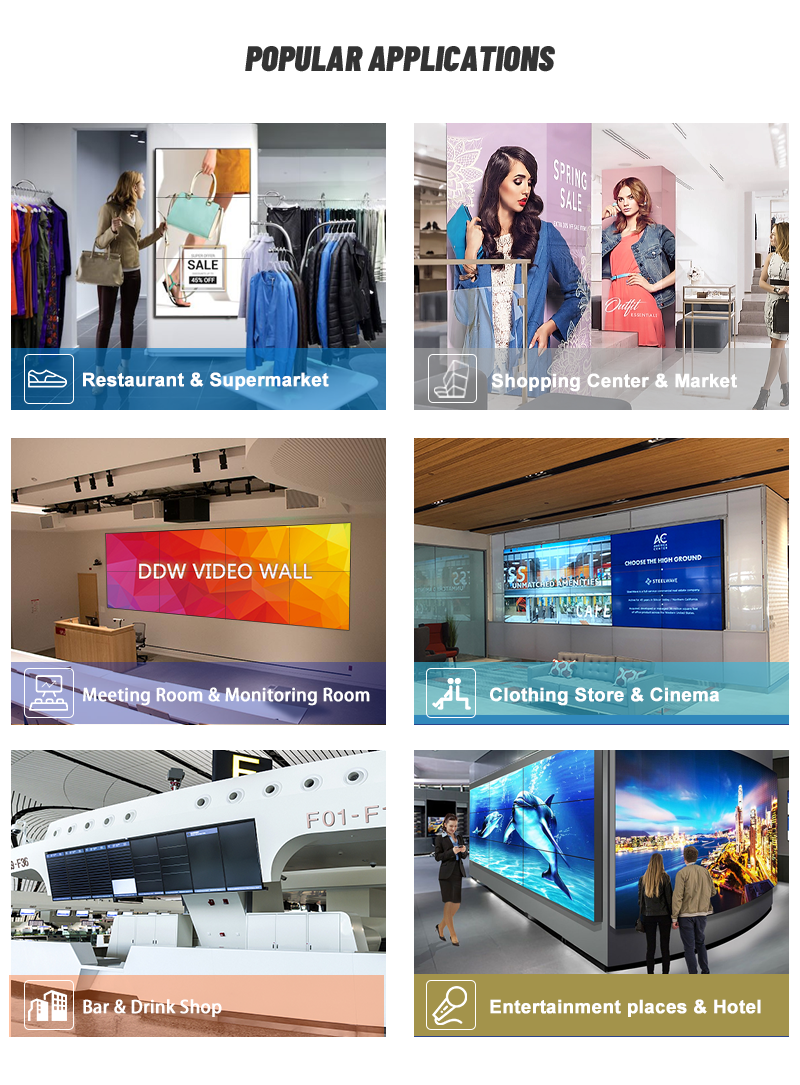

| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
| Video Wall Controller Specifications |
| DVI-I DUAL LINK | 1 |
| HDMI | 1 |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 2 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
| Vertical/Horizontal Display | Support |
| Combine Display | Support combination any horizental & vertical numbers of screens and show display |
| Support combine all screens together to show 1image |
| Solid Display | Support each screen input with separate signal |
| PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
| Multiple Interfaces | Support DVI,HDMI,VGA,AV &multiple signal inputs |
| Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
| Dimension(WxHxD) | 318.4x332x56mm |
