10.1'' Education Panel Screen

Code： HL10.1
13800000000 Reservation Now
Data sheet
Product detail

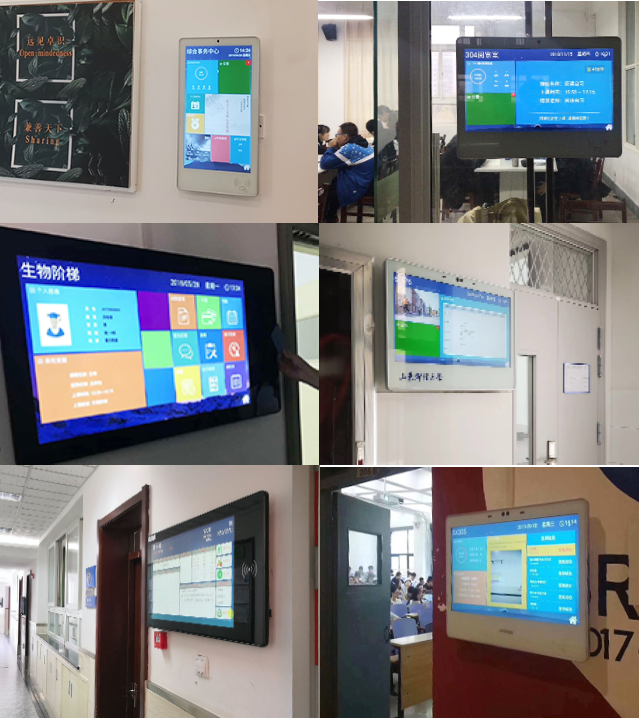

Project case
Type
Details
Descriptions
Product Form
Dimensions
25.9x17.5x4.35cm
Gross Weight
1.7kg
LCD
Screen Size
10.1inch
Screen Resolution
1280*800 IPS


Touch Panel
Touch Technology
Projected Capacitive 10-point Multitouch
Touch Connector
USB
Touch Panel Drivers
Android
Touch Life (Contacts)
Unlimited


Anti-glare LCD Panel
IP rating
IP65 Front / IP40 Back
Screen diagonal
10.1/25.65
Display active screen size
21.70x13.60cm
Aspect ratio
16:10
Physical resolution
1280x800
Colours displayed
16M
Brightness
250cd/m2
Contrast
800:1
Backlight / Backlight Lifetime
LED / 30,000hours
Visual Angle horizontal/vertical
170/170


Operation / Mechanical
Operating Temperature
-10 ~ +60 (°C)
Humidity Range (RH)
10%-90%
Gross weight
1.7kg
Housing material
Aluminium Metal
Housing LxWxH
25.9x17.5x4.35cm
Mounting
VESA 75*100


PC System
CPU
Rockchips RK3128, Quad Core, 1.3Ghz
Memory / Storage
1GB / 8GB

interface port

USB Port 1*USB 2.0. 1*OTG
RS232 1*RS232
I/O 1*RJ45
GPIO Support 4 chanel GPIO
Wifi
Support
System
Android 5.1


Power
Power Indicator
Green LED
Power Supply
100-240V ACDC active
Working Power
12V
Power Consumption
11w
Stand-By Consumption
<1W
