Product Detail

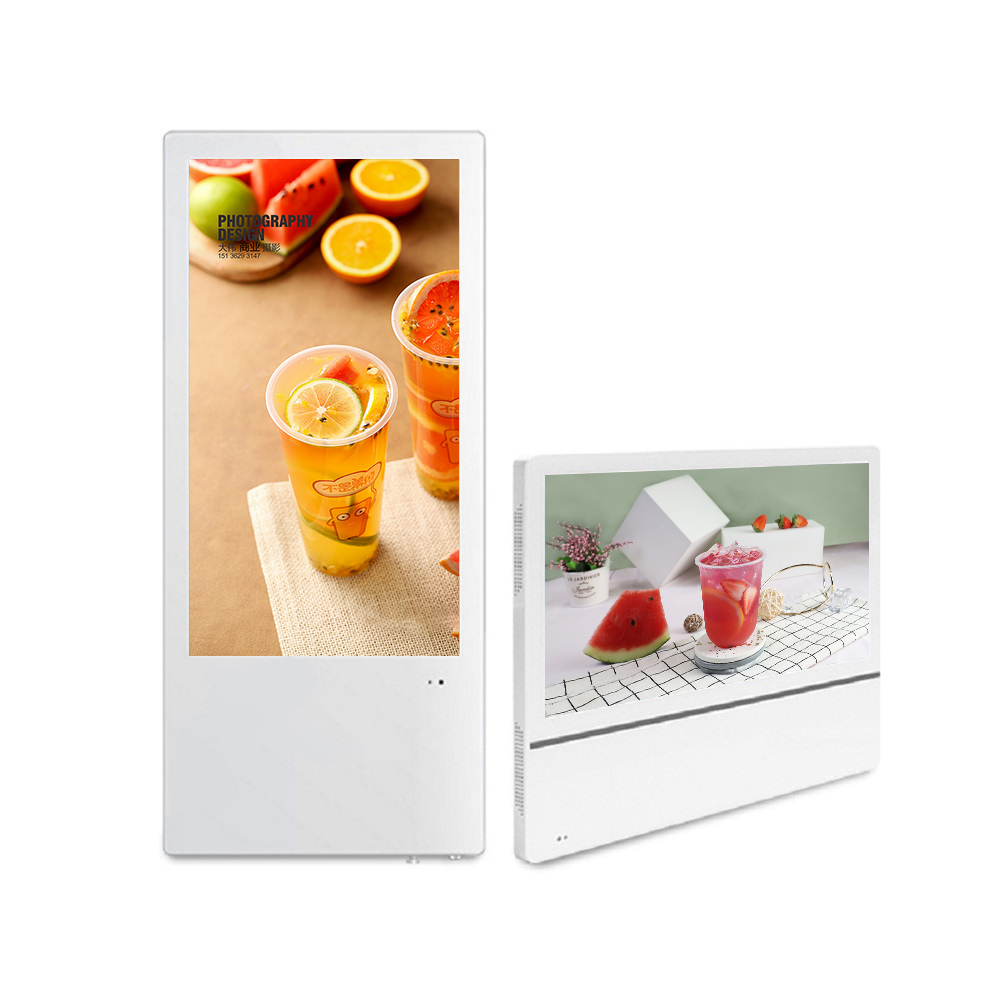

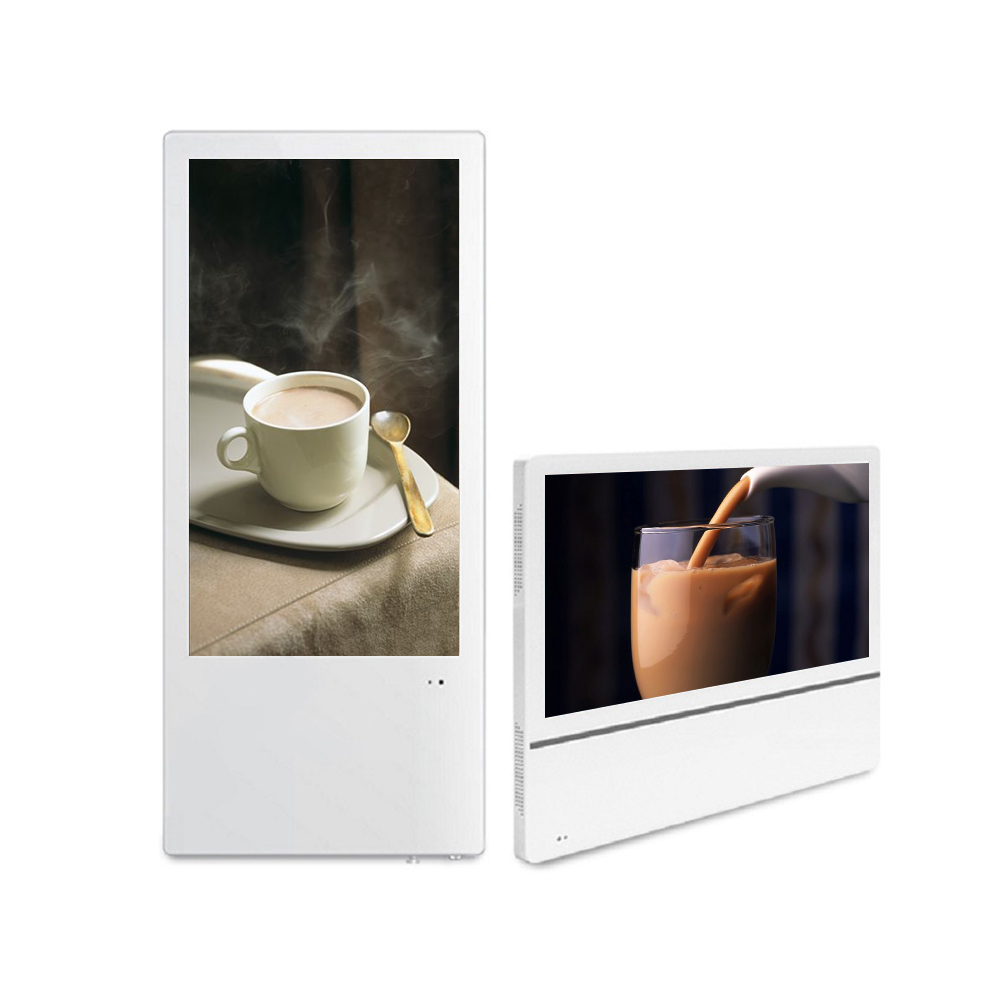

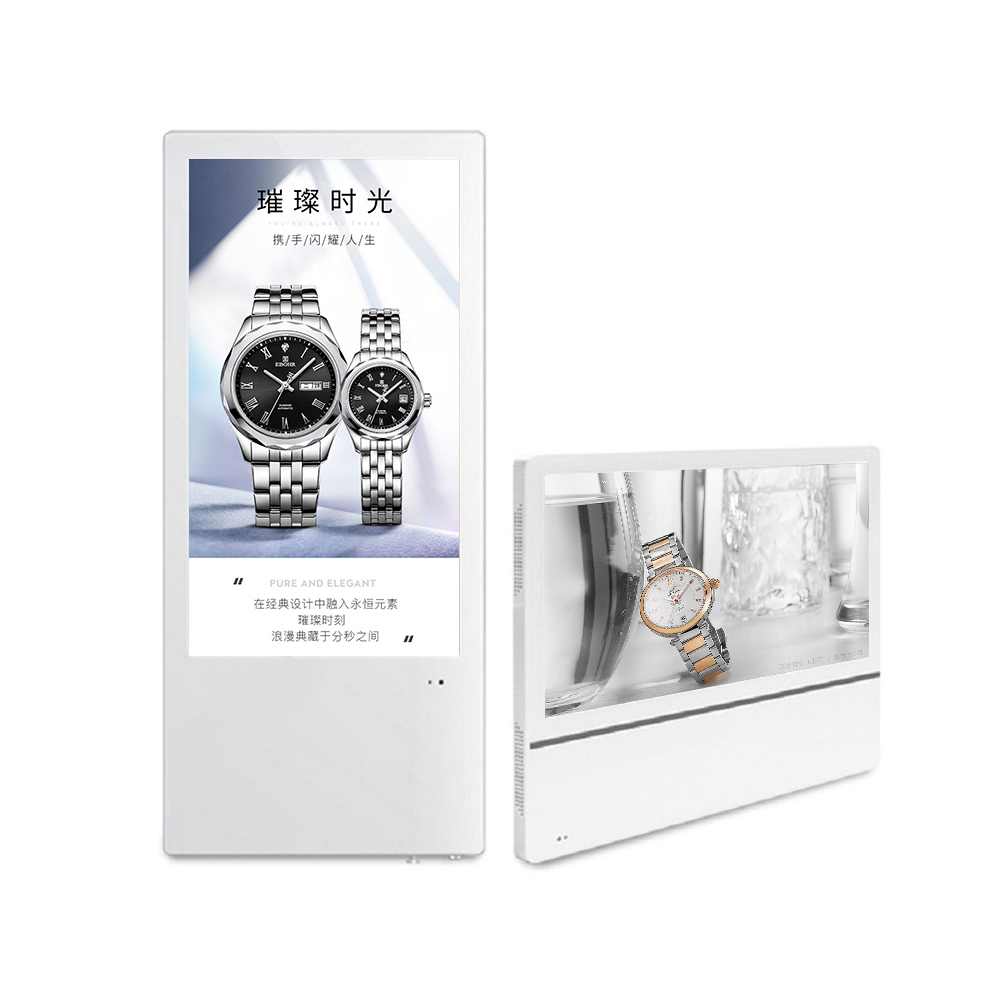

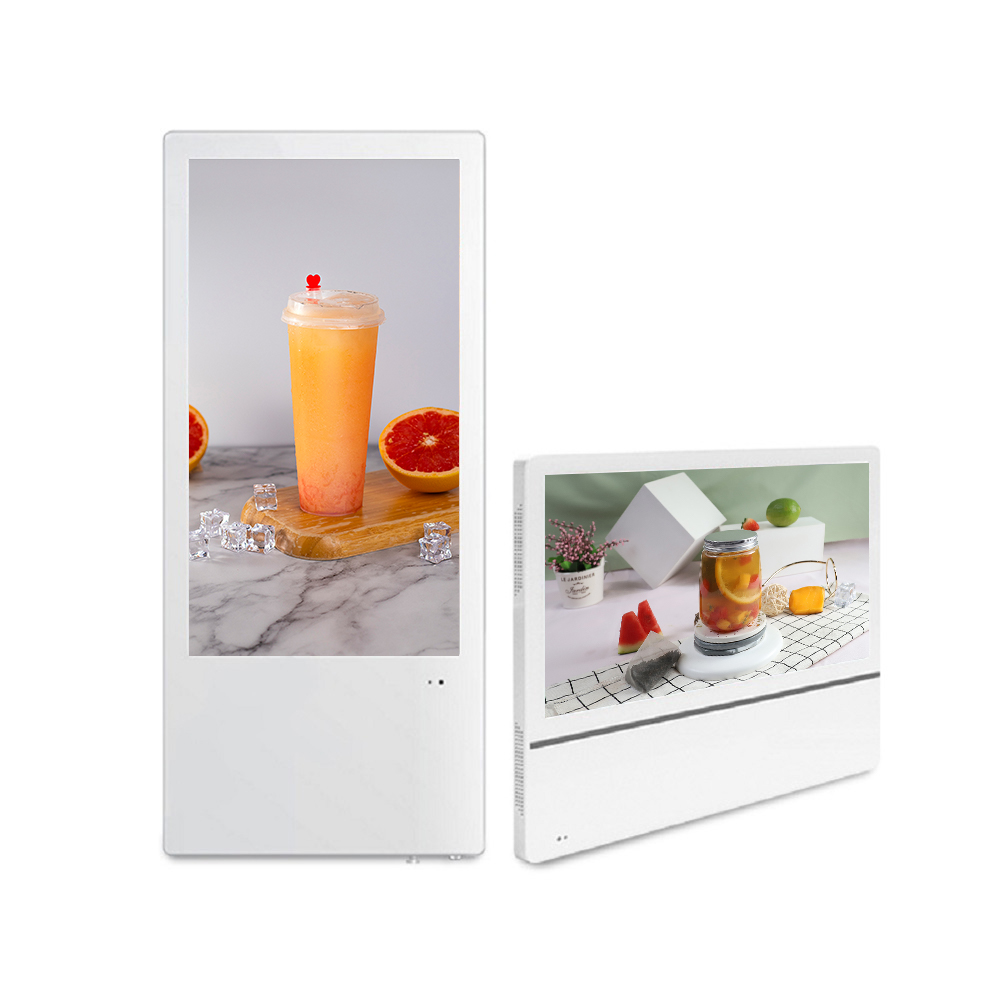

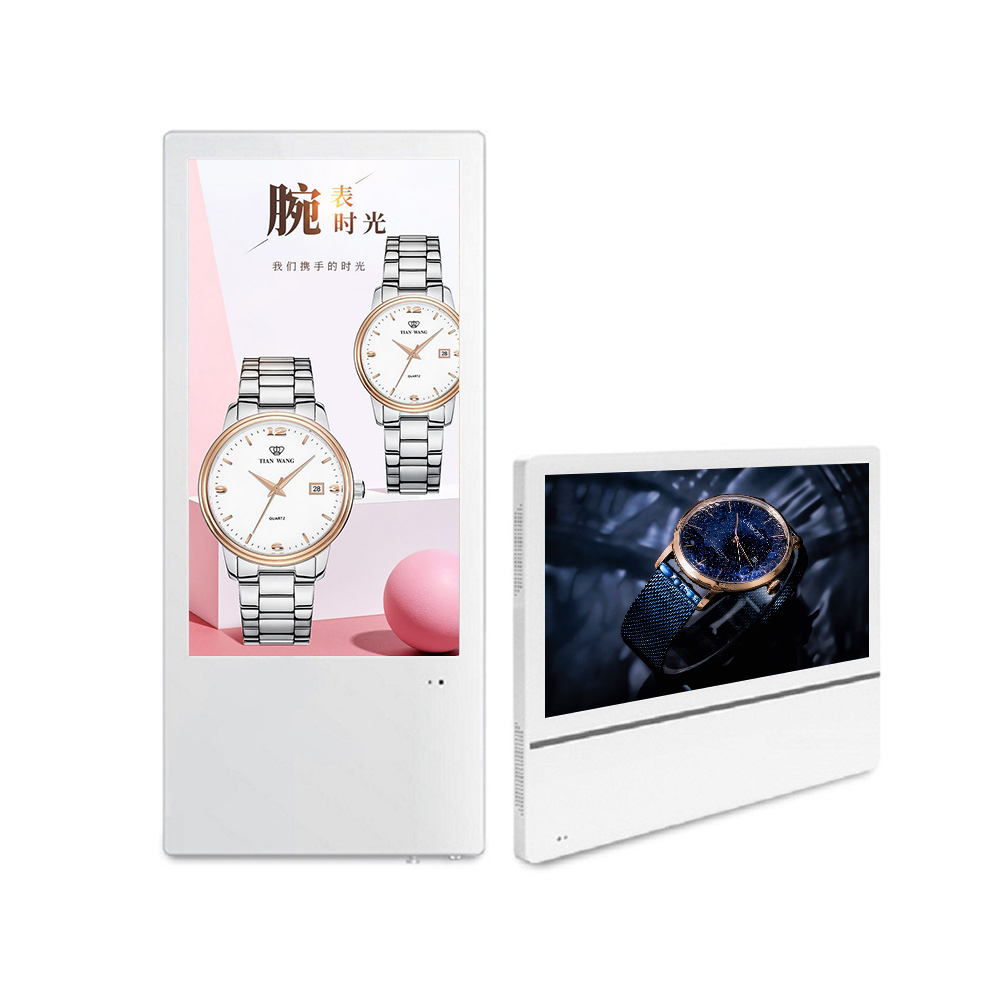

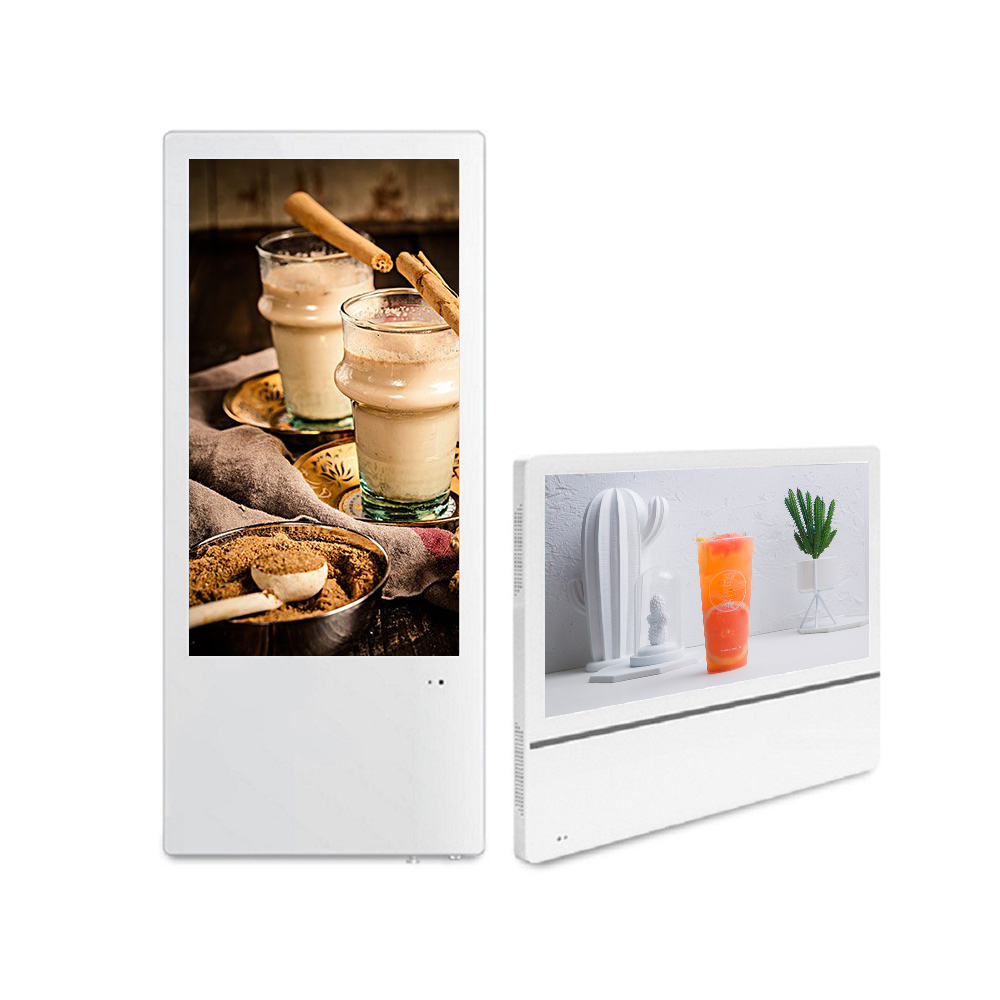

23.6" Vertical Wall Mount LCD Screen

Code HW23.6
Panel LG/Samsung/BOE/Others
Color Black/Silver/White/Customized
Touch Capacitive Touch with 10/20 Points
Material 3-5mm Tempered Glass/Cold Rolled Metal Case
System Single/Android/Windows
Data sheet
Product detail
Project case

Product Specification

Panel Brand

Samsung/LG/AU LCD/LED

Panel Size

23.6''

Product Color

Black ,white , silver, optional

CPU

Quad-Core RK3188 Cortex-A9 1.6GHz

RAM

2GB

GPU

Quad-Core version is Mail-400@ 533MHz

ROM ( internal memory )

8GB

OS

Android 4.2 or above

Video Format

MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,MOV,WMV,RM,RMVB,etc.

FHD 1080P Video

YES

Picture Format

JPG, BMP,PNG,etc.

Text

TXT

Audio Format

MP3,WAV

VGA Output

1

HDMI Output

1

USB

YES ( two )

RJ45

1

Touch screen

IR and capacitive optional ( multitouch: 2 to 10 points )

Update remotely

YES

Split Screens

YES

Log Management

YES

Weather Function

YES

Time and Date

YES

Live Broadcast

YES

Cloud Streaming

YES

Controlling Software

YES

Display

Support multi-channel HD display

Integrated HDMI 1.4 transmitter with HDCP support

Integrated TV decoder

Wifi

YES

LAN

Available

3G

3G is optional   ( MF210, WCDMA )

Camera

Optional ( 2M to 10M)

Accessory

Power supply cable, user manual, keys,adapter

Packing Standard

PEP and Carton for Inner Packing, Wooden Case for Outer Packing


23.6Inch vertical wall mount.PDF
